MiCode Note Android Studio 环境搭建
Android Studio 下载安装
[Android Studio官网下载](https://developer.android.com/studio)
配置网络环境
下载Notes源代码
1
2
3
4
| cd ~/Documents
mkdir project
cd project
git clone https://github.com/MiCode/Notes
|
创建Android项目
按图完成项目创建，并等待右下角项目创建进度完成。
1
2
| cp -r ./Notes/src/net/micode/notes/* ./MiNote/app/src/main/java/net/micode/notes/
cp -r ./Notes/res/* ./MiNote/app/src/main/res/
|
修改Manifest.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
| <?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools">
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="com.android.launcher.permission.INSTALL_SHORTCUT" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.READ_CONTACTS" />
<uses-permission android:name="android.permission.MANAGE_ACCOUNTS" />
<uses-permission android:name="android.permission.AUTHENTICATE_ACCOUNTS" />
<uses-permission android:name="android.permission.GET_ACCOUNTS" />
<uses-permission android:name="android.permission.USE_CREDENTIALS" />
<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED" />
<application
android:allowBackup="true"
android:dataExtractionRules="@xml/data_extraction_rules"
android:fullBackupContent="@xml/backup_rules"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:roundIcon="@mipmap/ic_launcher_round"
android:supportsRtl="true"
android:theme="@style/Theme.MiNote"
tools:targetApi="31">
<activity
android:name=".ui.NotesListActivity"
android:configChanges="keyboardHidden|orientation|screenSize"
android:label="@string/app_name"
android:launchMode="singleTop"
android:theme="@style/NoteTheme"
android:uiOptions="splitActionBarWhenNarrow"
android:windowSoftInputMode="adjustPan"
android:exported="true">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity
android:name=".ui.NoteEditActivity"
android:configChanges="keyboardHidden|orientation|screenSize"
android:launchMode="singleTop"
android:theme="@style/NoteTheme"
android:exported="true">
<intent-filter>
<action android:name="android.intent.action.VIEW" />
<category android:name="android.intent.category.DEFAULT" />
<data android:mimeType="vnd.android.cursor.item/text_note" />
<data android:mimeType="vnd.android.cursor.item/call_note" />
</intent-filter>
<intent-filter>
<action android:name="android.intent.action.INSERT_OR_EDIT" />
<category android:name="android.intent.category.DEFAULT" />
<data android:mimeType="vnd.android.cursor.item/text_note" />
<data android:mimeType="vnd.android.cursor.item/call_note" />
</intent-filter>
<intent-filter>
<action android:name="android.intent.action.SEARCH" />
<category android:name="android.intent.category.DEFAULT" />
</intent-filter>
<meta-data
android:name="android.app.searchable"
android:resource="@xml/searchable" />
</activity>
<provider
android:name="net.micode.notes.data.NotesProvider"
android:authorities="micode_notes"
android:multiprocess="true" />
<receiver
android:name=".widget.NoteWidgetProvider_2x"
android:label="@string/app_widget2x2"
android:exported="true">
<intent-filter>
<action android:name="android.appwidget.action.APPWIDGET_UPDATE" />
<action android:name="android.appwidget.action.APPWIDGET_DELETED" />
<action android:name="android.intent.action.PRIVACY_MODE_CHANGED" />
</intent-filter>
<meta-data
android:name="android.appwidget.provider"
android:resource="@xml/widget_2x_info" />
</receiver>
<receiver
android:name=".widget.NoteWidgetProvider_4x"
android:label="@string/app_widget4x4"
android:exported="true">
<intent-filter>
<action android:name="android.appwidget.action.APPWIDGET_UPDATE" />
<action android:name="android.appwidget.action.APPWIDGET_DELETED" />
<action android:name="android.intent.action.PRIVACY_MODE_CHANGED" />
</intent-filter>
<meta-data
android:name="android.appwidget.provider"
android:resource="@xml/widget_4x_info" />
</receiver>
<receiver android:name=".ui.AlarmInitReceiver"
android:exported="true">
<intent-filter>
<action android:name="android.intent.action.BOOT_COMPLETED" />
</intent-filter>
</receiver>
<receiver
android:name="net.micode.notes.ui.AlarmReceiver"
android:process=":remote" >
</receiver>
<activity
android:name=".ui.AlarmAlertActivity"
android:label="@string/app_name"
android:launchMode="singleInstance"
android:theme="@android:style/Theme.Holo.Wallpaper.NoTitleBar" >
</activity>
<activity
android:name="net.micode.notes.ui.NotesPreferenceActivity"
android:label="@string/preferences_title"
android:launchMode="singleTop"
android:theme="@android:style/Theme.Holo.Light" >
</activity>
<service
android:name="net.micode.notes.gtask.remote.GTaskSyncService"
android:exported="false" >
</service>
<meta-data
android:name="android.app.default_searchable"
android:value=".ui.NoteEditActivity" />
</application>
</manifest>
|
下载依赖
1
2
3
4
5
6
7
| cd ~/Documents/project/MiNote
wget https://dlcdn.apache.org//httpcomponents/httpclient/binary/httpcomponents-client-4.5.14-bin.zip
unzip httpcomponents-client-4.5.14-bin.zip -d app/libs
cd app/libs
rm -rf javadoc/ LICENSE.txt NOTICE.txt RELEASE_NOTES.txt
cp ./lib/* .
rm -rf lib
|
添加依赖
1
2
3
4
5
| implementation(fileTree(mapOf(
"dir" to "libs",
"include" to listOf("*.aar", "*.jar"),
"exclude" to emptyList<String>()
)))
|
修改过时函数showNotification
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| private void showNotification(int tickerId, String content) {
PendingIntent pendingIntent;
if (tickerId != R.string.ticker_success) {
pendingIntent = PendingIntent.getActivity(mContext, 0, new Intent(mContext,
NotesPreferenceActivity.class), PendingIntent.FLAG_IMMUTABLE);
} else {
pendingIntent = PendingIntent.getActivity(mContext, 0, new Intent(mContext,
NotesListActivity.class), PendingIntent.FLAG_IMMUTABLE);
}
Notification.Builder builder = new Notification.Builder(mContext)
.setAutoCancel(true)
.setContentTitle(mContext.getString(R.string.app_name))
.setContentText(content)
.setContentIntent(pendingIntent)
.setWhen(System.currentTimeMillis())
.setOngoing(true);
Notification notification=builder.getNotification();
mNotifiManager.notify(GTASK_SYNC_NOTIFICATION_ID, notification);
}
|
转换switch为if-else (共4处)
修改重复引入依赖
1
2
3
4
5
6
7
8
|
implementation(files("libs/httpclient-osgi-4.5.14.jar"))
implementation(files("libs/httpclient-win-4.5.14.jar"))
implementation(files("libs/httpcore-4.4.16.jar"))
|
在build.gradle(Module:app)的android字段里面，加上这段代码，排除掉冲突的系统依赖包
1
2
3
4
5
6
7
| packaging {
resources.excludes.add("META-INF/DEPENDENCIES");
resources.excludes.add("META-INF/NOTICE");
resources.excludes.add("META-INF/LICENSE");
resources.excludes.add("META-INF/LICENSE.txt");
resources.excludes.add("META-INF/NOTICE.txt");
}
|

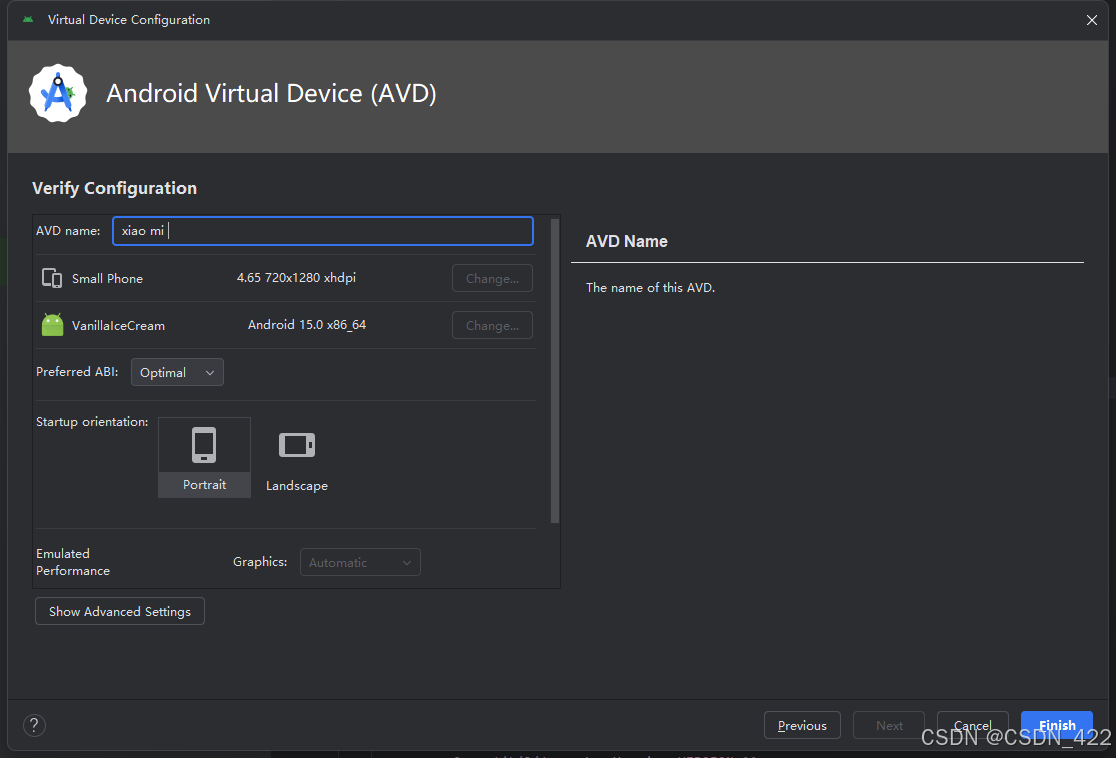

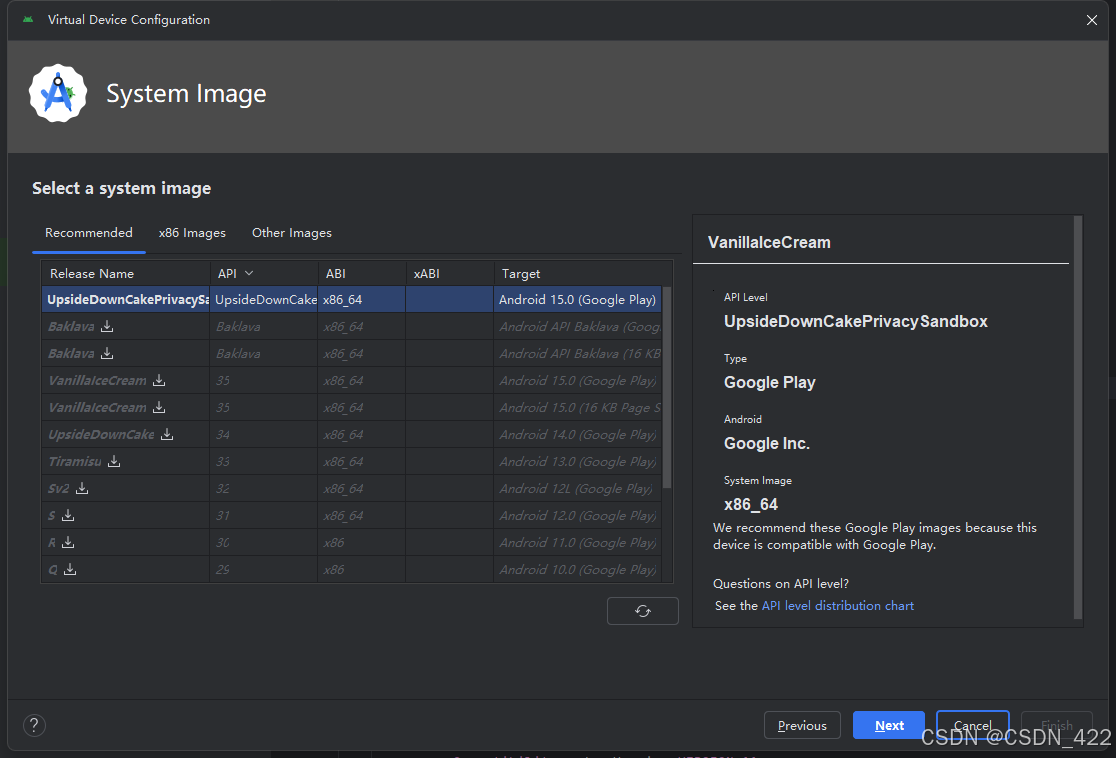

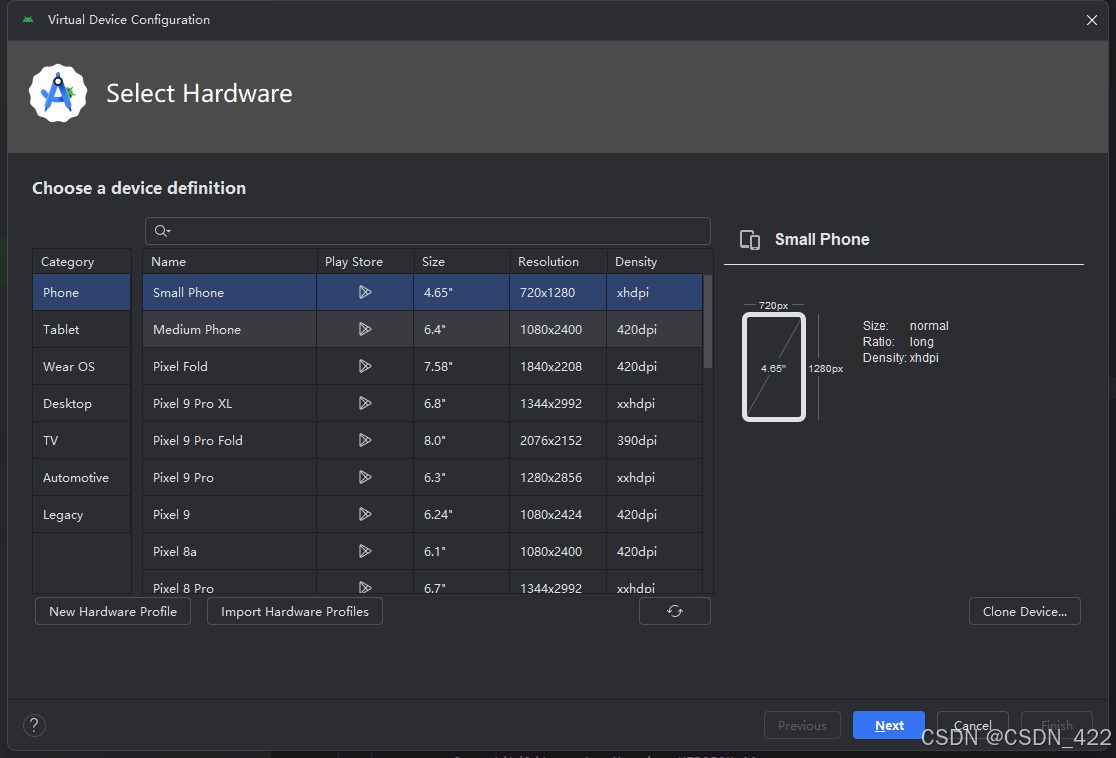

创建虚拟机
运行成功
